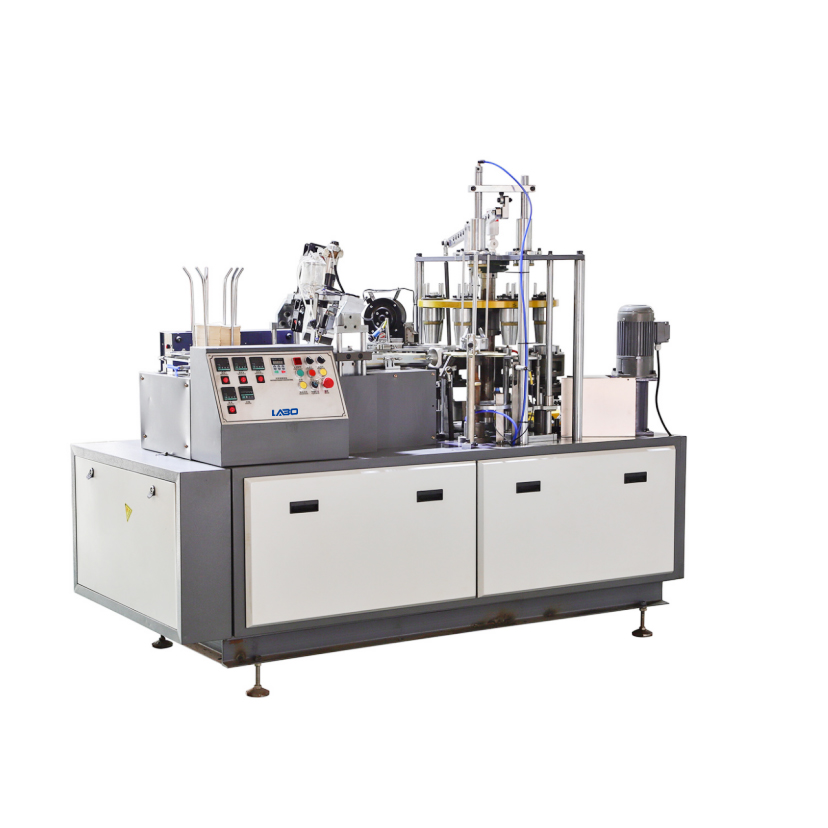

LF-80 paper cup machine is a multi-station automatic machine, through automatic paper feeding, imported heater side seal, cup top lubrication, automatic bottom paper feeding, bottom heater, bottom knurling and curling, it can make cups both single PE and double PE, for cold drinks and hot drinks.
Forming range: 2-12oz, MAX high 105mm,MAX bottom 55mm,MAX top 85mm thickness 150-350gsm
Applicable materials: Mainly PE coated paper
Machine speed: 75-85pcs/min, speed may fluctuate due to size and thickness reasons
Voltage requirements: 380V-3P
Air pressure requirement: 0.4-0.8mpa, the machine requires an air compressor to supply air
Power: 6.5kw
Machine weight: 2000kgs
Machine size: 2350 1250 1850mm
Packaging size: 2450 1350 1850mm
LB 600Y-GP Hydraulic Multifunction Paper Plate Machine adopts straight-line forming, which is paper feeding, forming and collecting in one straight line. stable forming, high efficiency and labor saving.
Our machine has function of automatically complete the full process of die cutting, creasing, embssoing and stack collection. It is an ideal cutting machine
The automatic carton thermoforming machine is a fully automatic paper forming machine with the advantages of high speed and convenient operation. This model uses a self-contained hot air generator for single PE coated paper.
Our LB 1600 Automatic Double Line Paper Box Machine with firm structure,high quality,low noise and high efficiency.1600 Automatic Double Line Paper Box Machine has the full servo control. Besides, it is very fast and suit for paper box of large quantity. It adopts photoelectric system controls. In case of an error in the paper box, the gluing tray will automatically rise, and it will return to normal after one cycle.
LB-1200 Automatic Paper Box Machine is an ideal equipment for the production of carton boxes, such as hamburgers, french fries boxes, fried chicken boxes, children's lunch boxes, take-out boxes, triangular pizza boxes, etc. The structure is sturdy, good quality, low noise, and high efficiency. It has a paper feeding unit, an adjustment unit, a water unit, a forming unit, a finished product collection unit and a counting unit.
