LB-120
| Availability: | |
|---|---|

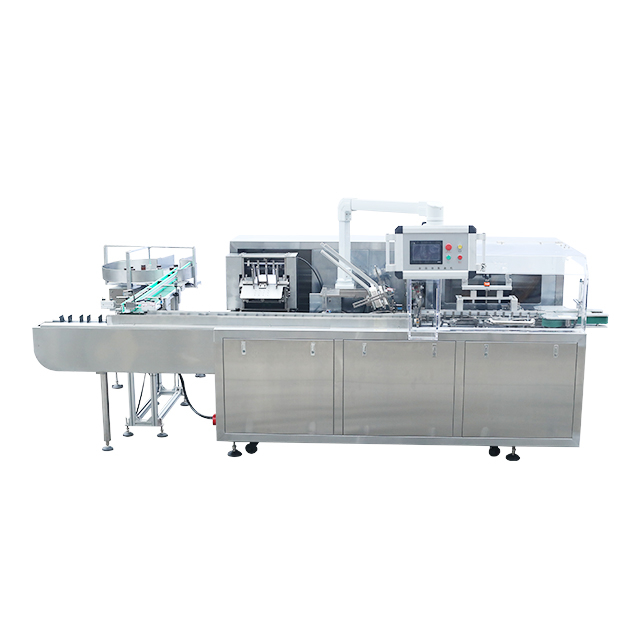

LB-120 Model Bottle Cartoning Machine with Auto Leaflet is suitable for packing plastic bottles, glass bottles and other bottled products as well as all kinds of tube ointment. The machine is equipped with automatic bottle management machine, which can automatically complete the functions of bottle blanking, manual fodling, carton opening and forming, product and manual input, carton batch number printing, carton sealing, carton automatic output and so on. This machine can be equipped with inkjet printer, glue spraying machine, labelling machine and so on.
Main Technical Parameters:
Model | LB-120 | |
Machine Speed | ≦100Box/Min | |
Carton Box Specifciation | Paper Thickness | 250-350g/㎡ |
| Size Range | Length:70-120mm |
|
| Width:15-90mm |
|
| Height:15-80mm |
Leaflet Specifciation | Paper Thickness | 60-70g/㎡ |
| Unfolded Size Range (1-4 folds) | (130-190)x(90-130)mm |
Compressed Air | ≧0.6㎥/Mmin 0.5mpa | |
Main Motor | 1.5KW 220V/380V 50HZ | |
Overall Dimensions | 4100X1200X1800mm | |
Net Weight | 1500KGS | |
LB 600Y-GP Hydraulic Multifunction Paper Plate Machine adopts straight-line forming, which is paper feeding, forming and collecting in one straight line. stable forming, high efficiency and labor saving.
Our machine has function of automatically complete the full process of die cutting, creasing, embssoing and stack collection. It is an ideal cutting machine
The automatic carton thermoforming machine is a fully automatic paper forming machine with the advantages of high speed and convenient operation. This model uses a self-contained hot air generator for single PE coated paper.
Our LB 1600 Automatic Double Line Paper Box Machine with firm structure,high quality,low noise and high efficiency.1600 Automatic Double Line Paper Box Machine has the full servo control. Besides, it is very fast and suit for paper box of large quantity. It adopts photoelectric system controls. In case of an error in the paper box, the gluing tray will automatically rise, and it will return to normal after one cycle.
LB-1200 Automatic Paper Box Machine is an ideal equipment for the production of carton boxes, such as hamburgers, french fries boxes, fried chicken boxes, children's lunch boxes, take-out boxes, triangular pizza boxes, etc. The structure is sturdy, good quality, low noise, and high efficiency. It has a paper feeding unit, an adjustment unit, a water unit, a forming unit, a finished product collection unit and a counting unit.
